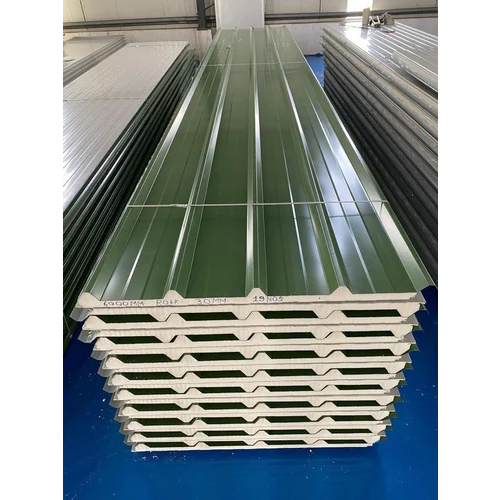

10 mm PUF Roof Sheet Panel

10 mm PUF Roof Sheet Panel Specification

Thermal Conductivity
0.023 W/mK

Surface Treatment
Color Coated / Pre-painted

Size
Standard & Custom sizes

Layer
3 (Top & bottom metal with PUF core)

Feature
Thermal insulation, Lightweight, Durable

Coating Type
Polyester / Galvalume

Installation Guideline
Fix sheets with self-drilling screws and proper overlaps

Density
2 Gram per cubic centimeter(g/cm3)

Product Type
PUF Panel

Material
PUF

Tensile Strength
Minimum 3.7 kg/cm2

Width
1000 mm (Approx.)

Thickness
10 mm

Application
Industrial

Heat Conductivity
0.023 W/mK

Color
Different Available

Max Withstanding Temperature
-40C to +80C

Corrosion Protection
Yes

Top Layer Material
Pre-painted galvanized steel

Fire Resistance
Yes

Seam Type
Overlapping joint

Water Absorption
<1% by volume

Customisation
Available

Profile Type
Trapezoidal corrugated

Bottom Layer Material
Metal sheet

Fastening
Self-drilling screw

Panel Weight
Approx. 10-12 kg/m2

10 mm PUF Roof Sheet Panel Trade Information

Minimum Order Quantity
100 Pieces

Payment Terms
Cash on Delivery (COD)

Supply Ability
5000 Pieces Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About 10 mm PUF Roof Sheet Panel

A 10 mm PUF Roof Sheet Panel is a specific type of insulated panel used for roofing applications. It consists of a 10 millimeter thick core made of Polyurethane Foam (PUF) sandwiched between two metal sheets. PUF roof sheet panels are designed to provide thermal insulation and weather protection for roofs. The PUF core offers excellent insulation properties, helping to regulate the temperature inside the building and reduce energy consumption for heating or cooling. Moreover, the 10 mm PUF Roof Sheet Panel is commonly used in commercial and industrial buildings, warehouses, and other structures that require efficient insulation and weatherproofing for the roof.

Superior Thermal and Fire Protection

Designed with a PUF core and metal facings, the panel achieves a low thermal conductivity of 0.023 W/mK, offering excellent insulation for energy-efficient buildings. Its fire-resistant properties enhance workplace safety, making it suitable for demanding industrial environments.

Easy Installation and Customization

Installation is straightforward thanks to the self-drilling screw system and overlapping joints. Panels are available in various colors and can be customized in size and profile to match your project requirements, making them a versatile choice for new constructions and retrofits.

Durability & Weather Resistance

The pre-painted galvanized and Polyester/Galvalume-coated surfaces, along with corrosion protection, provide long-term durability-even in challenging weather conditions. The panel resists water, with less than 1% absorption by volume, ensuring a longer lifespan.

FAQ's of 10 mm PUF Roof Sheet Panel:

Q: How are the 10 mm PUF Roof Sheet Panels installed?

A: These panels are installed using self-drilling screws, which secure them to the roof structure. The panels feature overlapping joints to prevent water ingress. Proper alignment and overlaps are crucial for optimal performance and weather tightness.

Q: What customization options are available for these roof panels?

A: Customization options include panel sizes, color choices, and profile type. You can order both standard and custom sizes to suit specific project requirements, ensuring a perfect fit for any industrial application.

Q: Where are these PUF roof sheet panels typically used?

A: They are primarily used in industrial buildings for roofing due to their thermal insulation, lightweight, and durability. Their robust nature also makes them suitable for warehouses, factories, and large commercial structures.

Q: What are the benefits of using pre-painted galvanized steel as the top layer?

A: The pre-painted galvanized steel top layer offers enhanced corrosion resistance, improved longevity, and customizable aesthetics. Its color-coated finish requires minimal maintenance while providing protection against harsh environmental factors.

Q: When should I choose PUF panels with fire resistance and thermal insulation?

A: Choose PUF panels with these features when temperature control, energy efficiency, and fire safety are critical-such as in industrial, cold storage, or manufacturing facilities where consistent insulation and hazard prevention are priorities.

Q: How does the panel resist water absorption and corrosion?

A: The PUF core inherently resists water absorption (<1% by volume), and both metal layers are coated to prevent corrosion. This combination offers strong protection against moisture and environmental degradation, adding to the panel's service life.

Q: What is the process for obtaining customized PUF roof panels from suppliers in India?

A: Contact a distributor, manufacturer, supplier, or trader with your project specifications. They will guide you through the customization process for dimensions, color, and profile type, ensuring that your order matches the exact requirements of your site.
